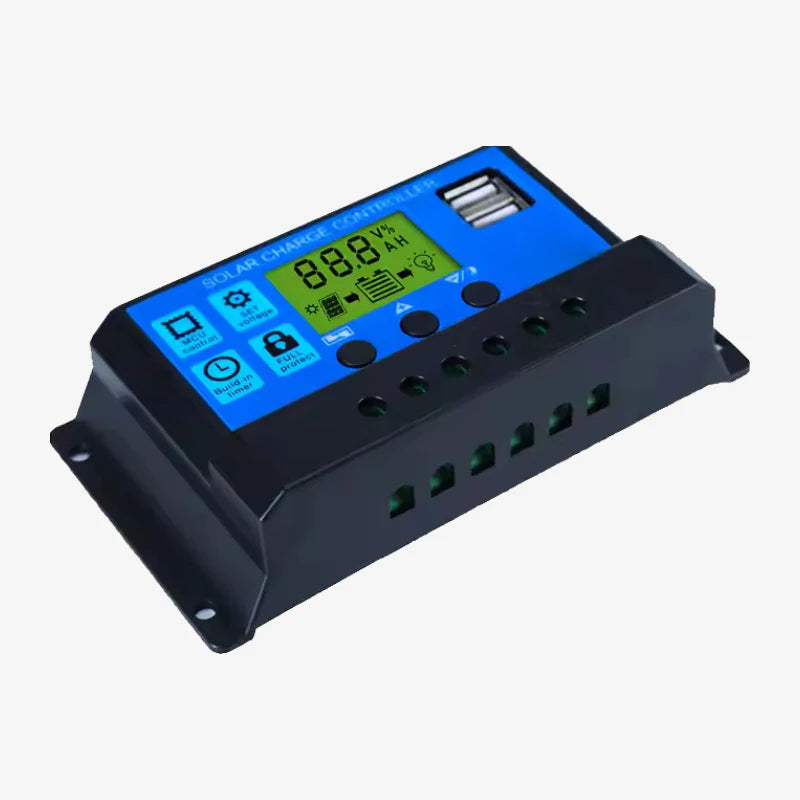

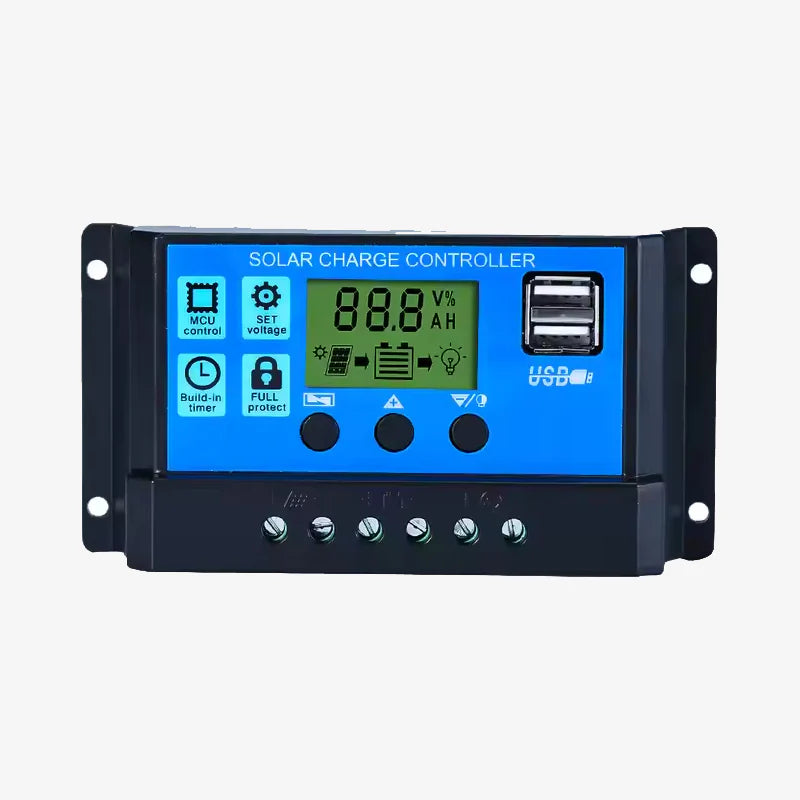

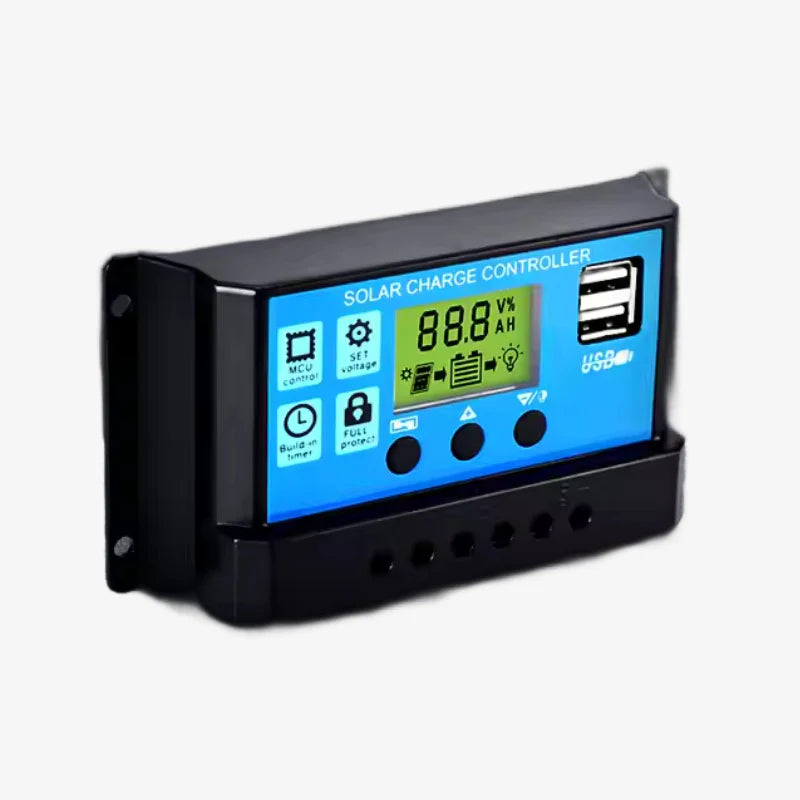

30A Smart Solar Charge Controller with Timer Function and USB Mobile Charging Port for Solar Power Systems

The 30A Smart Solar Charge Controller is an advanced device used in solar power systems to regulate battery charging from solar panels. It prevents overcharging, deep discharge, and reverse current flow, ensuring safe and efficient energy management. This model also includes a timer function and a USB mobile charging port, making it ideal for home solar setups, street lighting systems, and off-grid applications.

Specifications

• Battery voltage: 12V/24V automatic detection
• Maximum charging current: 30A
• Maximum load current: 30A
• USB output: 5V / 3A
• Operating temperature: -35°C to +60°C
• Self consumption: <10 mA

Charging voltages (12V battery)

• Equalization: 14.4V (sealed), 14.2V (gel), 14.6V (flooded)
• Float: 13.7V (adjustable)
• Low-voltage disconnect: 10.7V
• Reconnect: 12.6V
