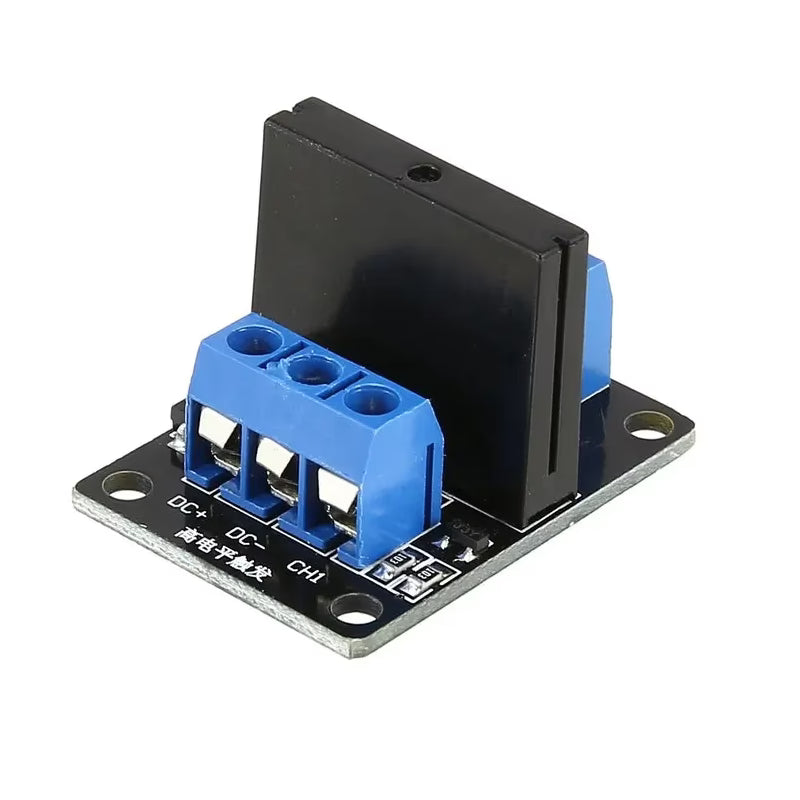

1 Channel 5V Solid State Relay Module – 1CH SSR Switching Board for Arduino, ESP32, Raspberry Pi & Microcontroller Projects

The 1 Channel 5V Solid State Relay Module is a compact electronic switching module designed for controlling compatible AC electrical loads using a low-voltage control signal from Arduino, ESP32, Raspberry Pi, microcontrollers, PLC circuits, and other development boards.

Unlike conventional electromagnetic relays, a Solid State Relay (SSR) has no mechanical switching contacts. Switching is performed electronically, providing silent operation, fast response, reduced mechanical wear, and long operating life when used within the specified electrical ratings.

This module operates from a 5V DC supply and provides a single relay-control channel. It is suitable for projects where frequent switching, silent operation, and compact installation are required. Depending on the module version, an onboard indicator LED may provide visual confirmation of relay activation.

The control side can be connected to a compatible microcontroller digital output, allowing software-controlled switching of suitable AC loads. This makes the module useful for smart-home systems, automation projects, temperature controllers, lighting controllers, IoT systems, heater control, educational electronics, and prototype development.

Because a solid-state relay contains no moving mechanical contacts, it is especially useful in applications that require repeated ON/OFF switching. It also avoids the audible clicking sound normally produced by electromagnetic relay modules.

The screw terminals make load-side wiring convenient, while the control pins provide easy connection to Arduino and other controller boards.

Typical applications include AC lamp switching, heater control, home automation, IoT appliance control, temperature-based switching, timer systems, automatic lighting, industrial prototypes, and electronic control projects.

Important: Most commonly available 1-channel 5V SSR modules are intended for AC load switching only. They should not be assumed suitable for switching DC loads unless specifically stated by the module manufacturer. When working with mains voltage, proper insulation, enclosure, fuse protection, wiring practices, and electrical safety precautions are essential.
