MAJESTRONICZ

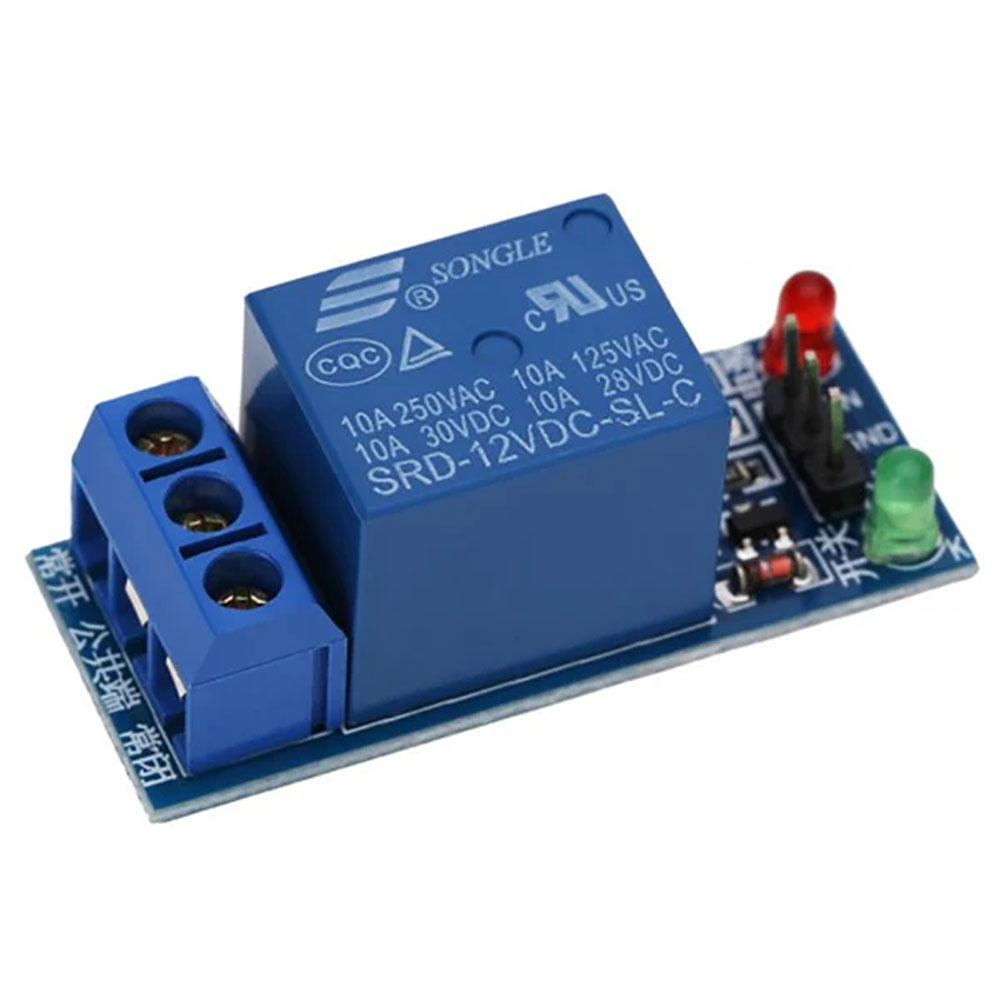

1 Channel 12V Relay Module High/Low Level Trigger Optocoupler Isolation Relay Board for Arduino Raspberry Pi ESP32 and DIY Electronics Projects
1 Channel 12V Relay Module High/Low Level Trigger Optocoupler Isolation Relay Board for Arduino Raspberry Pi ESP32 and DIY Electronics Projects
Regular price
Rs. 59.00
Regular price
Sale price
Rs. 59.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
š¦ For Bulk Order Enquiry ā Click Here for Best Price
The 1 Channel 12V Relay Module is an electrically operated switch used to control high-voltage or high-current devices with low-voltage control signals. It is widely used in automation, home appliances, robotics, and microcontroller-based projects such as Arduino, ESP32, and Raspberry Pi.
Specifications:
-
Supply Voltage: 12V DC
-
Relay Type: SPDT (Single Pole Double Throw)
-
Trigger Signal: Digital Control Input
-
Contact Rating: Up to 10A (250VAC / 30VDC)
-
Output Terminals: COM, NO, NC
-
Status Indicator: LED
Pin Configuration:
-
VCC ā 12V Power Supply
-
GND ā Ground
-
IN ā Control Signal Input
