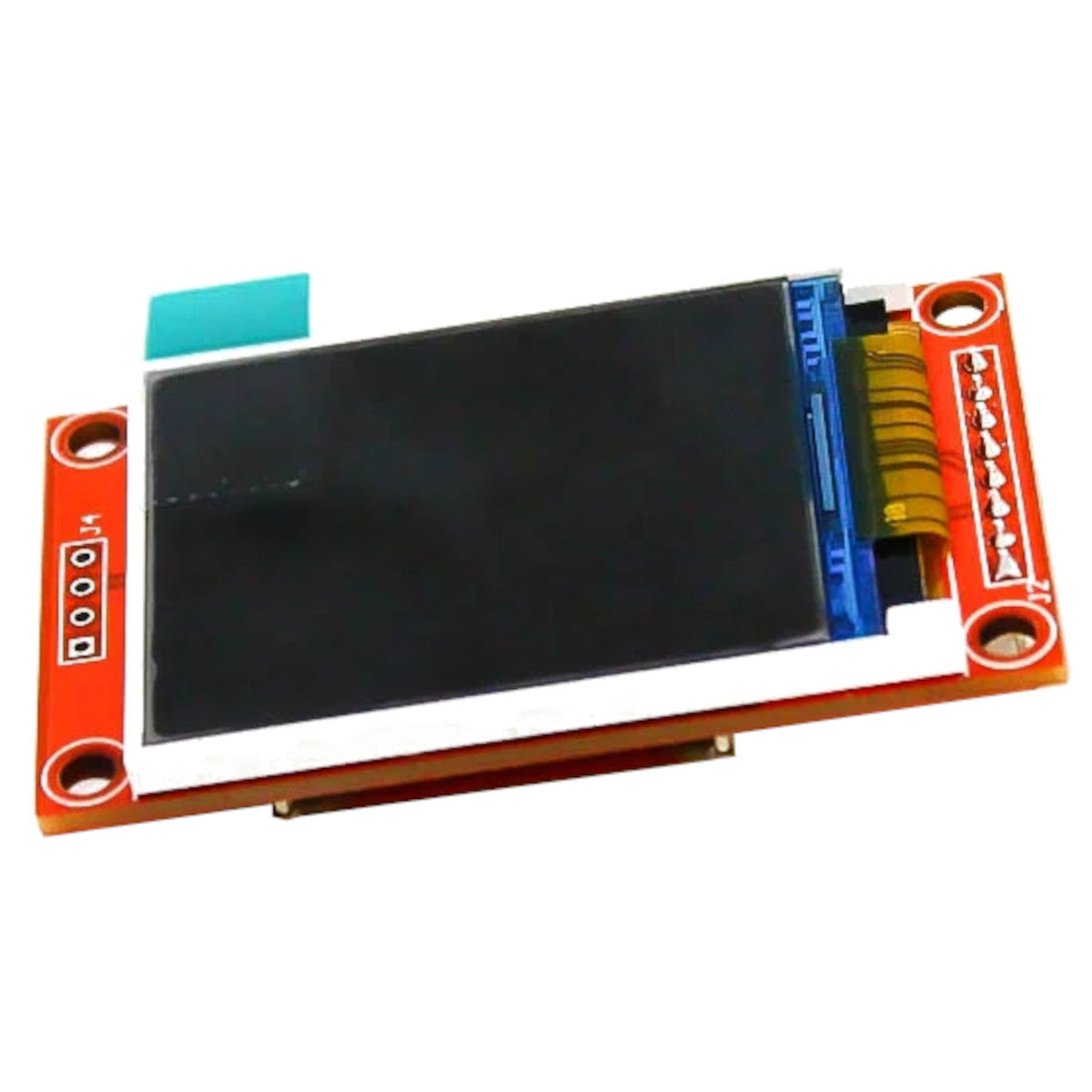

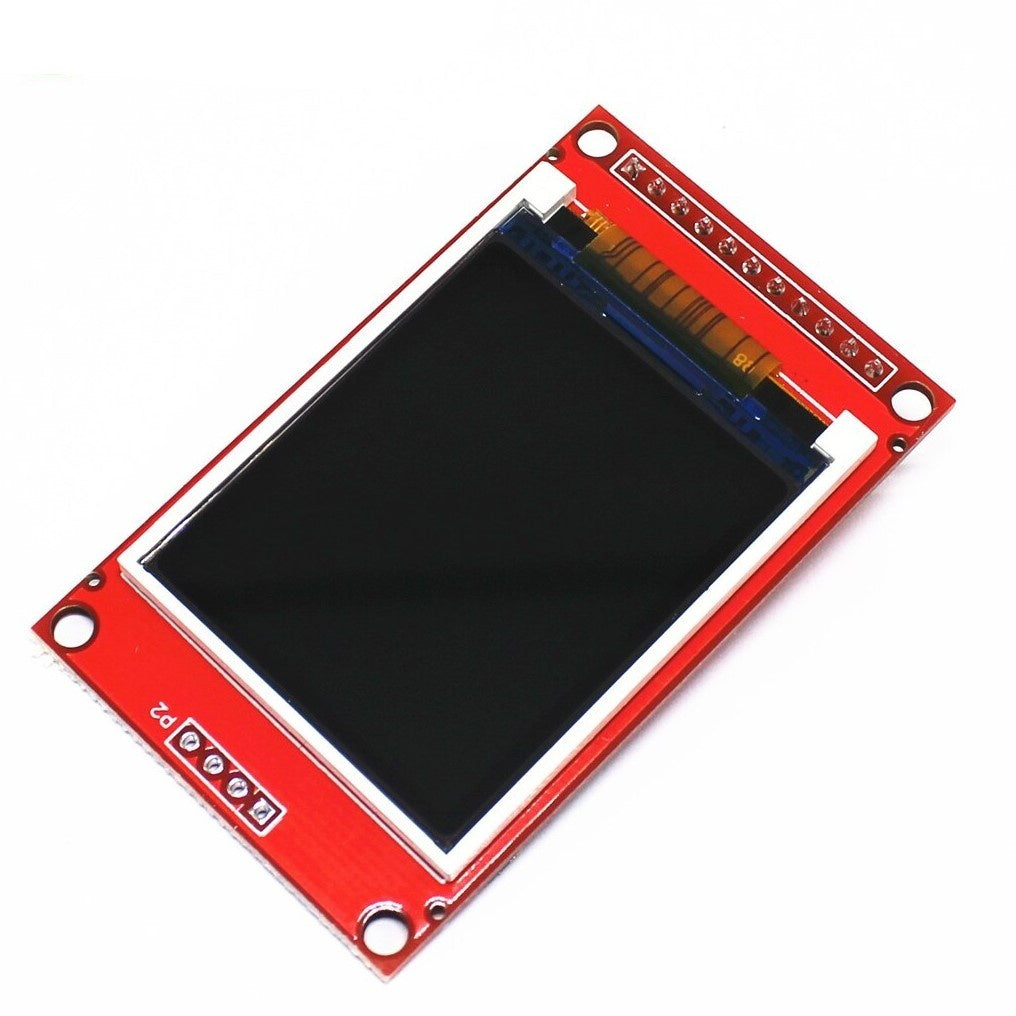

1.8 Inch TFT SPI LCD Display 128x160 V1.1 Color Screen Module
1.8 Inch TFT SPI LCD Display 128x160 V1.1 Color Screen Module
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price
The 1.8 Inch TFT SPI LCD Display 128x160 V1.1 Module is a compact full-color display module designed for microcontroller-based projects and embedded applications. It features a 128x160 pixel resolution TFT screen with SPI communication interface, providing fast data transfer with fewer connection pins.
This TFT display module is compatible with popular development boards such as Arduino, ESP8266, ESP32, STM32, and Raspberry Pi. It is ideal for displaying graphics, text, sensor data, menus, animations, and user interfaces in DIY electronics and IoT projects.
The module provides vibrant color output and supports easy integration using popular libraries like Adafruit GFX, Adafruit ST7735, and TFT_eSPI.
Specifications
| Specification | Details |
|---|---|
| Product Type | TFT LCD Display Module |
| Display Size | 1.8 Inch |
| Resolution | 128 × 160 Pixels |
| Display Type | Color TFT LCD |
| Interface | SPI |
| Driver IC | ST7735 |
| Operating Voltage | 3.3V / 5V Compatible (Module Dependent) |
| Logic Level | 3.3V Logic Recommended |
| Display Colors | 65K / 262K Colors (Controller Dependent) |
| Viewing Area | Approx. 28 × 35 mm |
| Communication Speed | High-Speed SPI |
| Module Version | V1.1 |
| Connection Type | Pin Header |
| Backlight | LED |
| Mounting Type | Through Hole Header Pins |
Pin Configuration
| Pin | Function |
|---|---|
| VCC | Power Supply |
| GND | Ground |
| SCL / SCK | SPI Clock |
| SDA / MOSI | SPI Data Input |
| RES / RST | Reset |
| DC / A0 | Data Command Selection |
| CS | Chip Select |
| BL / LED | Backlight Control |
Features
- 1.8-inch compact color TFT display
- 128x160 pixel resolution
- SPI interface for fast communication
- Low pin count connection
- Supports graphics and text display
- Compatible with Arduino, ESP32, ESP8266, STM32
- Bright LED backlight
- Easy integration with popular display libraries
- Suitable for portable and embedded projects
Applications
- Arduino Display Projects
- ESP32 IoT Projects
- ESP8266 Projects
- Raspberry Pi Display Interface
- Sensor Data Monitoring
- Smart Home Devices
- Robotics User Interface
- Portable Instruments
- Gaming Projects
- Digital Meters
- Embedded System Development
