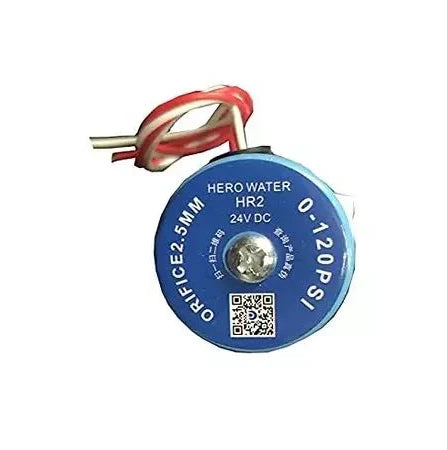

1/8 Inch Solenoid Valve

1/8 Inch Solenoid Valve

Rs. 205.00
Rs. 220.00 Rs. 205.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

1/8 inch Solenoid Valve — a compact type often used where space is limited and precise control over fluid or air flow is needed.

1/8 Inch Solenoid Valve:

Specification Description
Port Size 1/8 inch (BSP or NPT threaded ports)
Voltage Commonly available in 12V DC, 24V DC, 110V AC, 220V AC
Operation Type Normally Closed (NC) or Normally Open (NO)
Material Brass, Stainless Steel, or Plastic body
Seal Material NBR, EPDM, Viton (depending on fluid type)
Flow Media Water, Air, Gas, Oil (make sure to match with seal compatibility)
Pressure Range 0 - 0.8 MPa (depends on model)
Temperature Range Usually 0°C to 80°C
Response Time Fast, generally <20ms
Current Consumption 300mA - 1A depending on coil resistance

🟢 Features:

  • Compact Size: Perfect for tight spaces.
  • Fast Operation: Ideal for automation requiring quick open/close cycles.
  • Low Voltage Control: Safe and easy to interface with microcontrollers (via relays/MOSFETs).
  • Wide Application Range:
    • Small pneumatic tools
    • Miniature water dispensing systems
    • Coffee machines
    • Medical equipment
    • Small-scale automation setups
