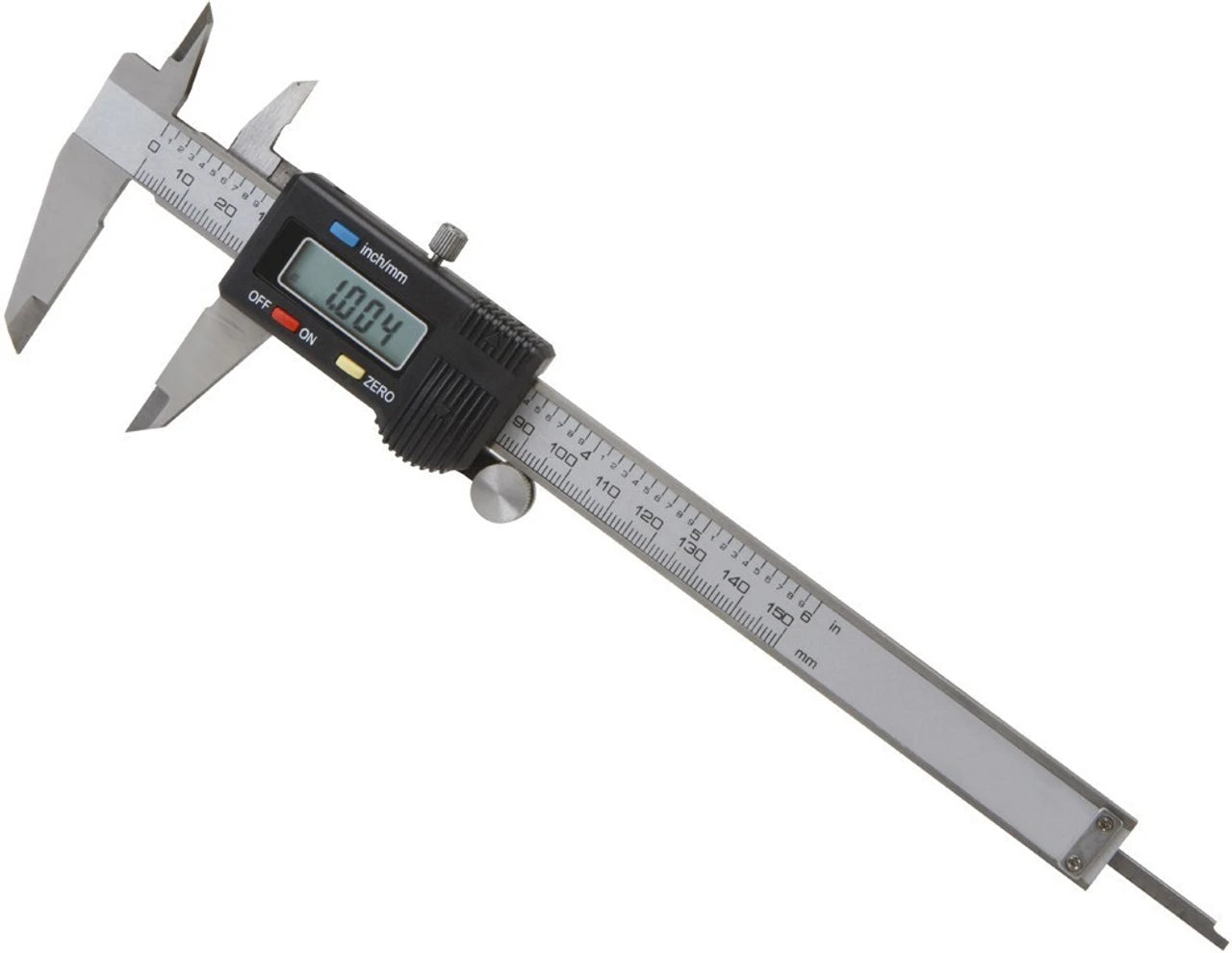

0–150mm 6-Inch Stainless Steel Digital Vernier Caliper with LCD Display
0–150mm 6-Inch Stainless Steel Digital Vernier Caliper with LCD Display
Couldn't load pickup availability
📦 For Bulk Order Enquiry – Click Here for Best Price
The 0–150mm Digital Vernier Caliper is a precision measuring instrument designed for measuring external dimensions, internal dimensions, depth and step measurements. It features a clear LCD screen that provides quick and easy-to-read measurement results.
The caliper supports both millimetre and inch measurement modes, allowing users to change units using the inch/mm conversion button. The zero-setting function enables measurements to be taken from any position, making it suitable for comparative and differential measurement.
Its stainless steel measuring jaws and beam provide durability and smooth operation. The thumb roller helps with controlled jaw movement, while the locking screw keeps the slider securely in position. This digital caliper is suitable for electronics work, mechanical projects, engineering, machining, woodworking, jewellery measurement, 3D printing and general workshop use.

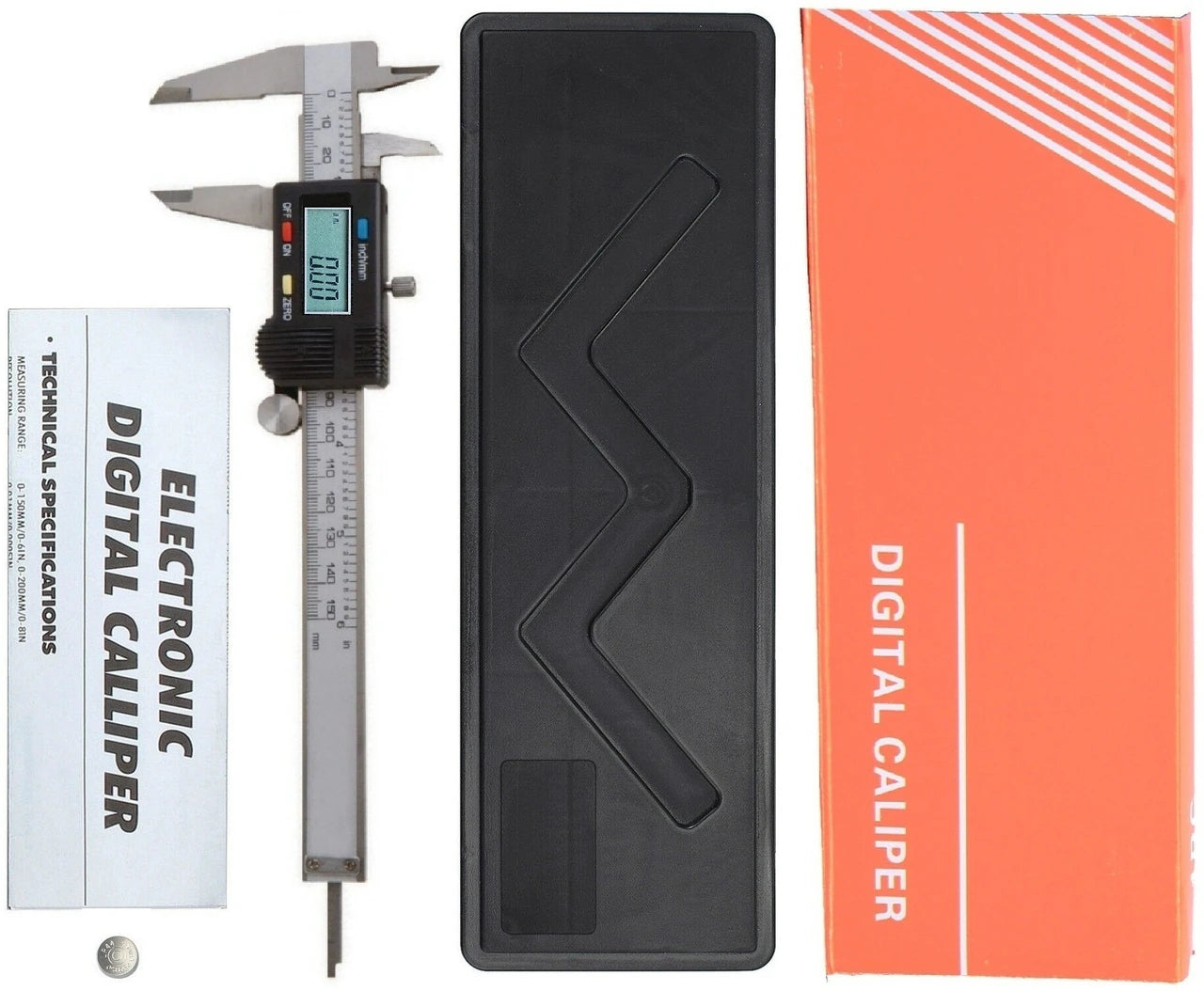

A protective storage case is included for safe storage and transportation.
Key Features
- Measures from 0 to 150mm or 0 to 6 inches
- Large and easy-to-read LCD display
- Millimetre and inch unit conversion
- External measurement jaws
- Internal measurement jaws
- Depth measuring rod
- Step measurement capability
- Zero-setting function at any position
- Thumb roller for smooth adjustment
- Locking screw for holding measurements
- Stainless steel measuring beam and jaws
- Suitable for precision workshop measurements
- Supplied with storage case
Specifications
| Specification | Details |
|---|---|
| Product Type | Digital Vernier Caliper |
| Measuring Range | 0–150mm / 0–6 inch |
| Resolution | 0.01mm / 0.0005 inch |
| Accuracy | ±0.02mm / ±0.001 inch for measurements below 100mm |
| Accuracy Above 100mm | Approximately ±0.03mm / ±0.001 inch |
| Repeatability | 0.01mm / 0.0005 inch |
| Display Type | LCD Digital Display |
| Measuring System | Linear Capacitive Measuring System |
| Measurement Units | Millimetres and Inches |
| Unit Conversion | Inch/mm Conversion Button |
| Maximum Measuring Speed | Approximately 1.5m/second or 60 inch/second |
| External Measurement | Supported |
| Internal Measurement | Supported |
| Depth Measurement | Supported |
| Step Measurement | Supported |
| Zero Function | Supported at Any Position |
| Fine Adjustment | Thumb Roller |
| Position Lock | Slider Locking Screw |
| Material | Stainless Steel Beam and Measuring Jaws |
| Power Supply | 1 × 1.5V LR44 Button Cell |
| Working Temperature | Approximately 5°C to 40°C |
| Recommended Humidity | Below 80% Relative Humidity |
| Suitable For | Engineering, Electronics, Mechanical, DIY and Workshop Use |
| Package Contents | 1 × Digital Caliper, 1 × Storage Case and 1 × Button Cell |
Note: Accuracy can be affected by dirt, moisture, incorrect jaw alignment or improper zero setting. Clean the measuring faces and press the zero button before taking precise measurements.
Applications
- Measuring component thickness
- Measuring external diameter
- Measuring internal diameter
- Measuring hole depth
- Measuring step height
- Measuring screws, nuts and bolts
- Measuring electronic components
- Measuring 3D-printed parts
- Mechanical and engineering work
- Jewellery and craft measurements
- Woodworking and fabrication
- Educational laboratory use
