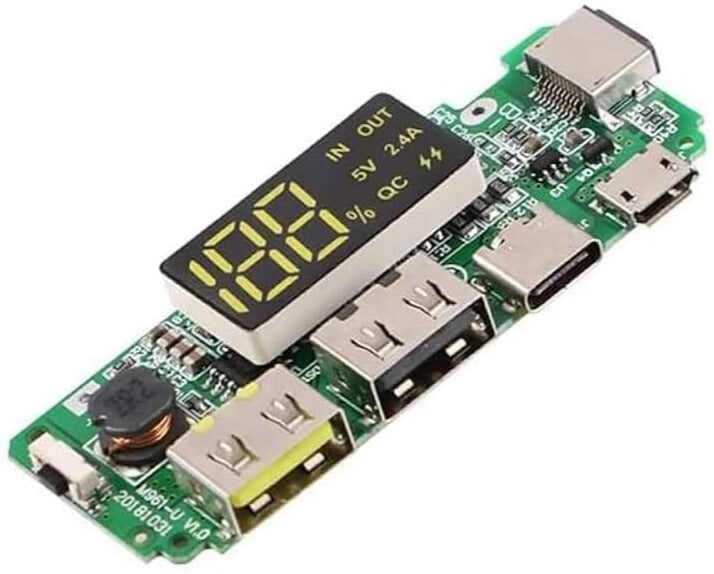

🔋 18650 Lithium Battery Charging Module with Digital Display – Dual USB 5V 2.4A Output

Features:

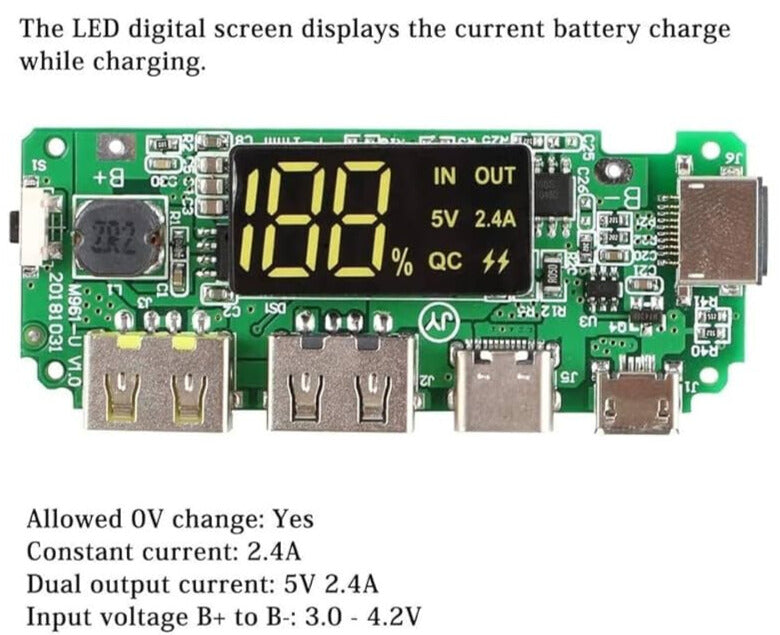

• ✅ Digital LED Display
  Shows real-time battery voltage and status for easy monitoring.

• ✅ Dual USB Output Ports
  Provides 5V 2.4A max output – perfect for charging two devices simultaneously.

• ✅ Boost Converter Module
  Efficiently steps up 3.7V lithium battery to stable 5V output.

• ✅ Built-in Protection Circuit
  Safeguards against overcharge, over-discharge, overcurrent, and short circuit.

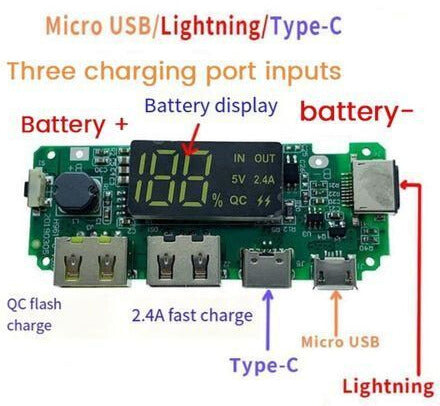

• ✅ Micro USB Input Port
  Easily charge your 18650 lithium battery via standard 5V USB.

Specifications:

• Input Voltage: 5V (Micro USB)

• Output Voltage: 5V

• Max Output Current: 2.4A (shared across both ports)

• Battery Compatibility: 1x 3.7V 18650 Li-ion battery (not included)

• Display: Digital LED voltage display

• Protection: Overcharge, Overdischarge, Overcurrent, Short Circuit

• Dimensions: Approx. 65mm x 22mm x 12mm

Applications:

• DIY Power Bank

• Phone Charging Station

• Portable Electronics

• Emergency Power Backup

• Arduino & IoT Projects
