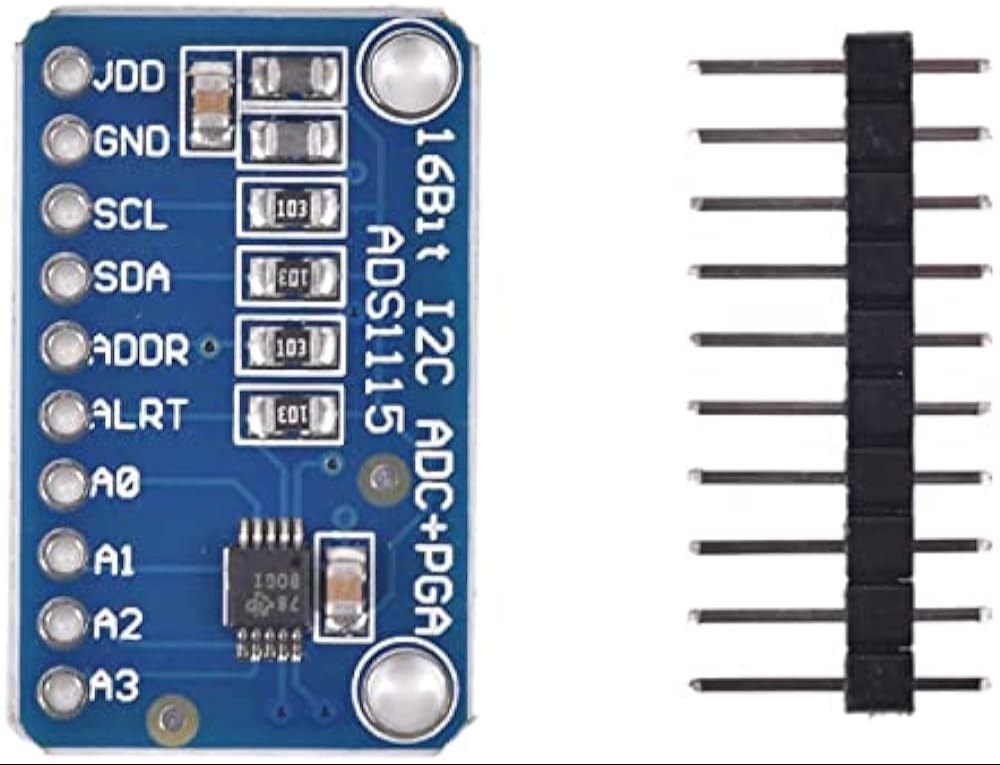

Analog to Digital Convertor(ADC)-ADS1115

The ADS1115 is a 16-bit analog-to-digital converter (ADC) with a 4-channel input, designed by Texas Instruments. It is commonly used in embedded systems, microcontroller projects, and sensors for high-precision digital conversion of analog signals.

Features of ADS1115-16BIT-4CH:

• Resolution: 16-bit resolution, providing high precision for analog-to-digital conversion
• Channels: 4 differential input channels, which can also be configured for single-ended inputs
• Data Rate: Up to 860 samples per second (SPS)
• Power Supply: Operates on 2.0V to 5.5V power supply
• Interface: Communicates with a microcontroller via I2C interface (2-wire communication)
• Programmable Gain Amplifier (PGA): Allows programmable gain for better sensitivity adjustment (up to ±6.144V input range)
• Low Power Consumption: Ideal for battery-operated or low-power applications
• Internal Comparator: Includes a built-in comparator with an adjustable threshold
• On-chip Temperature Sensor: Some models include a temperature sensor, useful for measuring the temperature of the device or external environments
• I2C Addressing: Selectable address to allow multiple devices on the same I2C bus
